NAC3FC-HC

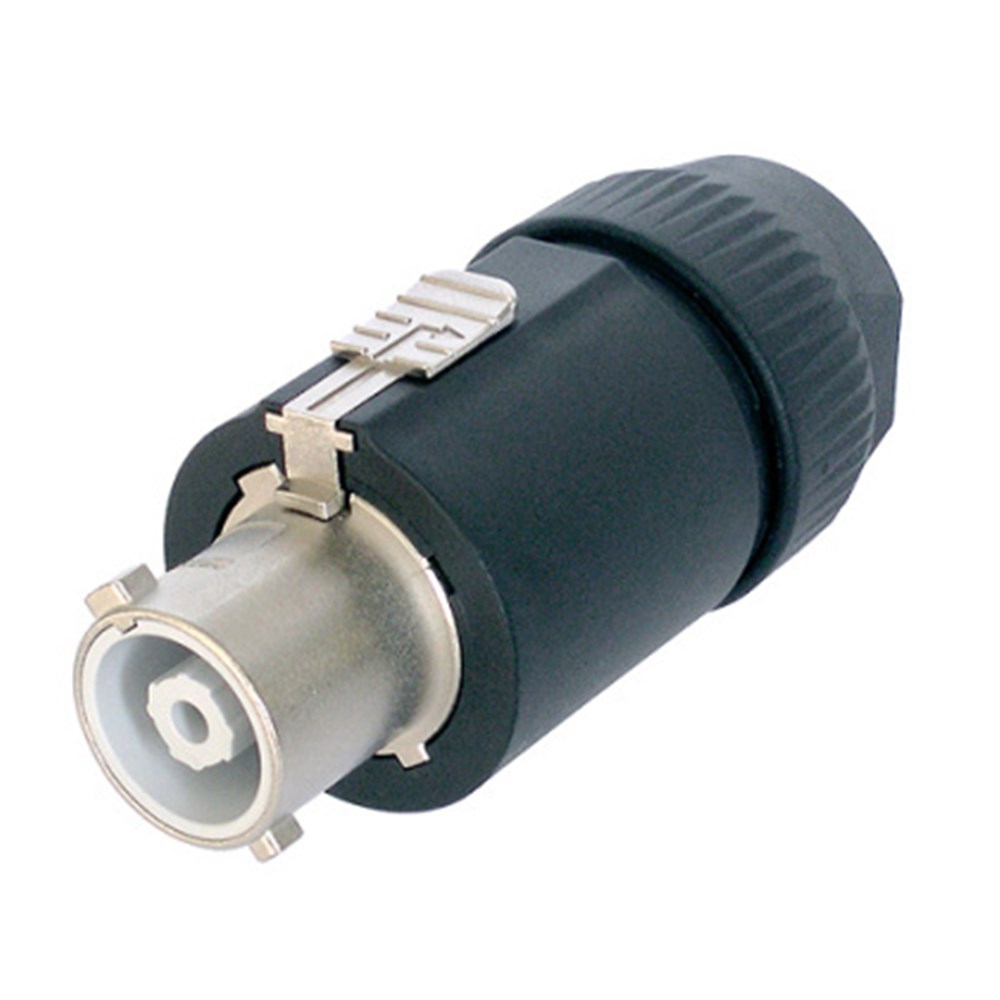

powerCON 32 A cable connector

The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.

Features and Benefits

• 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
• Premating contact for protective earth
• Fast and easy locking system to prevent unintentional disengagement
• Cable O.D. Range: 8 - 20 mm
• Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
• Excellent cable handling and protection
• Extremely robust and reliable
• VDE, UL, cUL and JET approved

Specifications

Product

Title

• NAC3FC-HC

Connection Type

• powerCON

Gender

• female

Electrical

Contact resistance

• ≤ 3 mΩ

Dielectric strength

• 4 kVdc / 2.8 kVac

Insulation resistance

• > 10 GΩ (initial)

Rated current per contact

• 32 A (30A for cUL)

Rated voltage

• 250 V ac

Mechanical

Cable O.D.

• 8 - 20 mm

Lifetime

• > 1000 mating cycles

Wiresize

• 2.5 - 6 mm²

Wiresize

• 14 - 10 AWG

Wiring

• screw terminals

Locking device

• Quick Lock

Material

Contact plating

• 4 µm Ag

Contacts

• Brass (CuZn39Pb3)

Insert

• Polyamide (PA 6.6 25 % GR)

Locking element

• Zinc diecast (ZnAl4Cu1)

Shell

• Polyamide (PA 6 30 % GR)

Strain relief

• Polyacetal (POM)

Environmental

Flammability

• UL 94 HB

Protection class

• IP 20 (mated)

Safety Requirements

• EN/IEC 61984

Solderability

• Complies with IEC 68-2-20

Temperature range

• -25 °C to +70 °C
