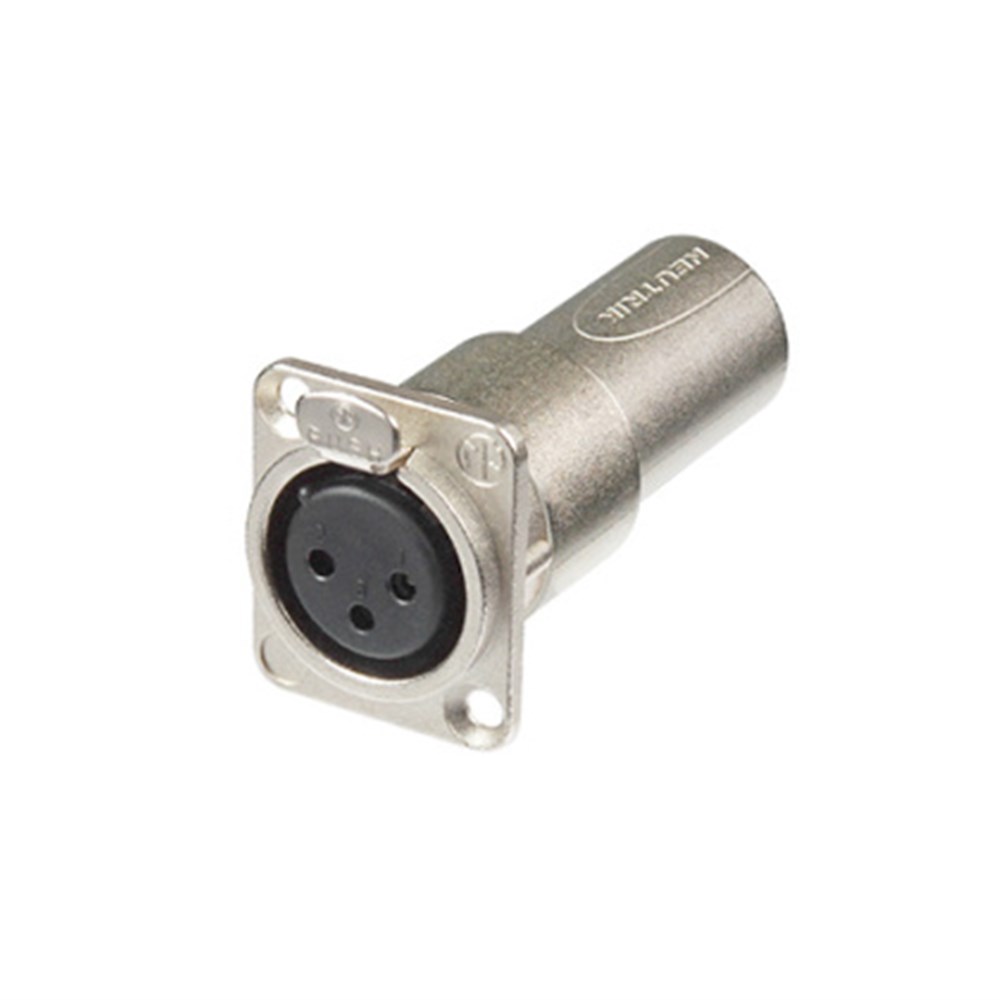

NA3FDM

XLR female-male feedthrough adapter for panel mount

 Product

Title

• NA3FDM

Connection Type

• Adapter

Electrical

Capacitance between contacts

• ≤ 4 pF

Contact resistance

• ≤ 5 mΩ

Dielectric strength

• 1,5 kVdc

Insulation resistance

• > 2 GΩ (initial)

Rated current per contact

• 16 A

Rated voltage

• < 50 V

Mechanical

Insertion force

• ≤ 20 N

Withdrawal force

• ≤ 20 N

Lifetime

• > 1000 mating cycles

Wiresize

• max. 2.5 mm²

Wiresize

• max. 14 AWG

Wiring

• Solder contacts

Locking device

• Latch lock

Chassis shape

• D

Material

Contact plating

• 2 µm Ag over 2 µm Ni

Insert

• Polyamide (PA 6.6 30 % GR)

Locking element

• Steel Ck67

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• Nickel

Environmental

Flammability

• UL 94 HB

Standard compliance

• IEC 61076-2-103

Protection class

• IP 40

Solderability

• Complies with IEC 68-2-20

Temperature range

• -30 °C to +80 °C
