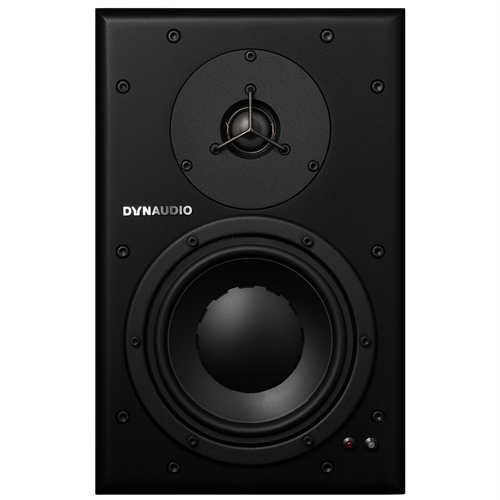

Dynaudio BM6A 2-Way Active Nearfield Monitor (EACH)

Product Code: DY-BM6A

Brand
Dynaudio
RRP $2,179.50


Unit of Measure
EACH



1 Year
Features

Technical Specifications
Brands Dynaudio Professional
Size 6.5"
Speaker Type Studio Monitor
  • Details
  • Downloads

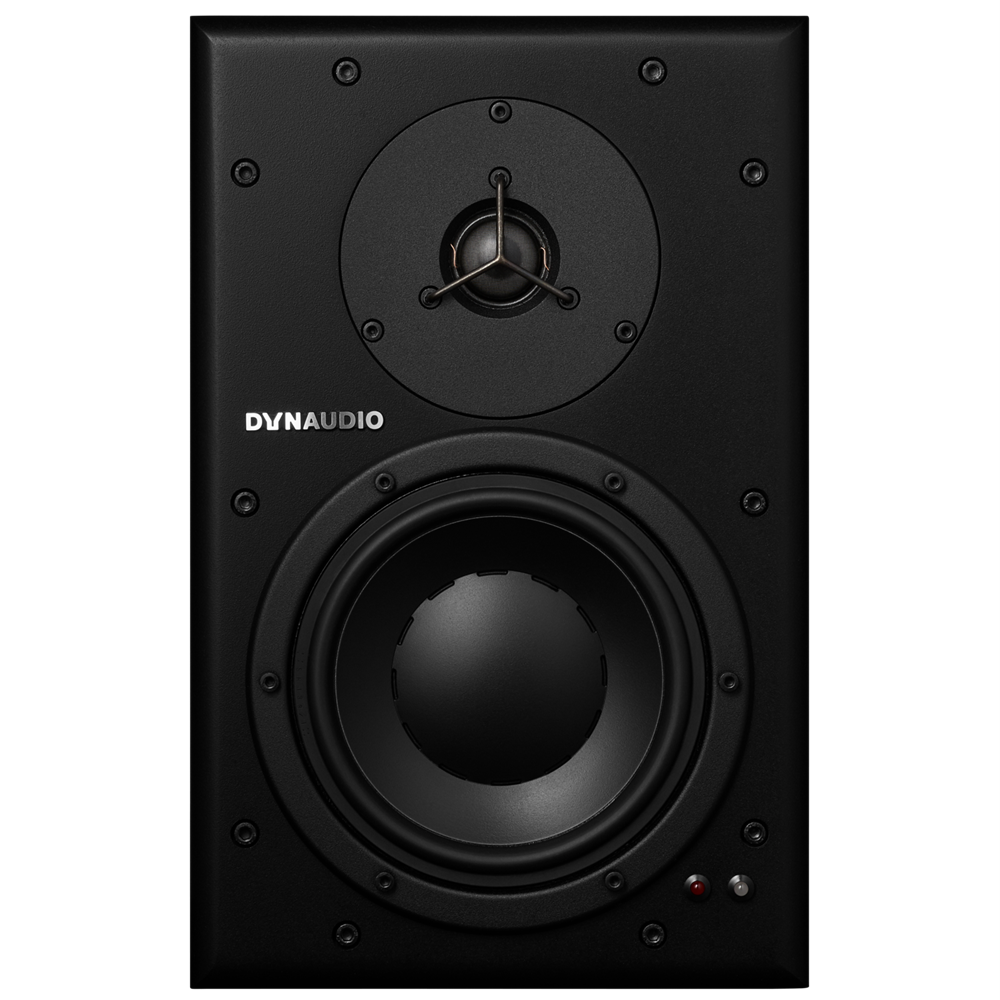

BM6A

The Dynaudio nearfield experience.

The BM 6A features an electronic 4th order phase-aligned crossover with a crossover point at 2.2kHz, which feeds two high performance discrete MOSFET amplifiers rated at 100W each.

The low frequency section is driven by a low frequency equalizer offering a choice between extended, critical damped response or more conventional higher Qt response for more level but less low frequency output. Included in the electronics is a complex protection circuit, which helps to prevent accidental damage to the drivers, yet still providing maximum transient response.

The BM 6A is housed with an elegant matte cabinet with radius edged construction on the front baffle to reduce boundary effects and improve overall sound quality.



Technical specifications

Specification sheet for Classic BM Range part 2
System: 2-way Active Nearfield Monitor
Frequency Response: 41Hz - 21kHz
Max SPL 1m, pair (IEC Long Term): 118dB RMS
Max SPL 2m, 5.1 (IEC Long Term): 119,5dB RMS
Input level for 85 dB SPL @ 1m (+4/-10): -12dBu RMS / -28 dBu RMS
Input level for max peak SPL (+4/-10): +16dBu peak / -1dBu peak
Power consumption: Idle: 25W / Max: 200W
Amplifier power: Tweeter: 100W / Woofer: 100W
Resonance Frequency: 49Hz
Specification sheet for Classic BM Range part 1
Internal Cabinet Volume: 9,5 liters
Principle: Bass reflex
Crossover Frequencies: 2200Hz
Crossover Slope: 24dB/oct
Tweeter: Esotec 28mm soft dome, rear chamber, Magnetic fluid. 4 mm die-cast alu front,
Woofer: 17cm, 75mm pure alu wire voice coil, One piece molded polypropylene cone
Weight: 11kg
Dimensions (WxHxL): 217 x 338 x 321mm
