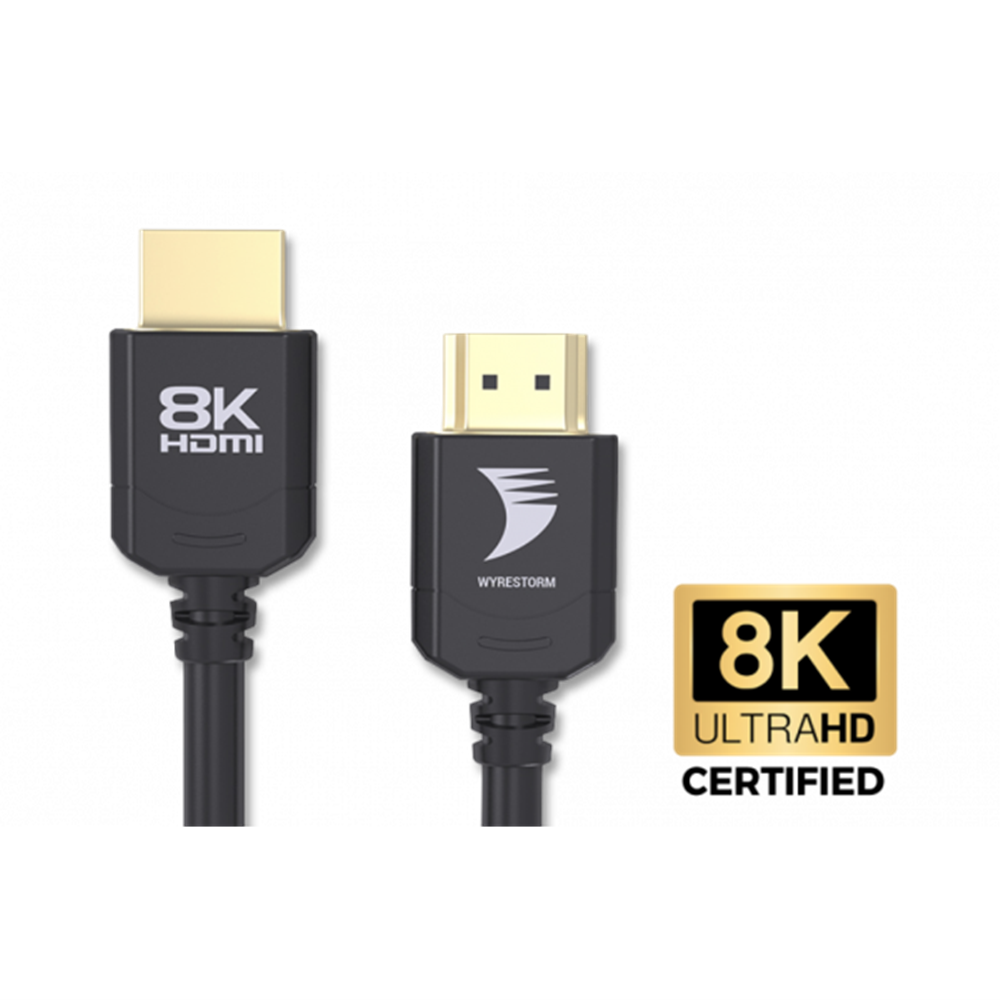

8K 60Hz HDMI 2.1 Cable with VW-1 Rating
1 Meter

Our 8K HDMI cables are designed to meet the Ultra high bandwidth requirements demanded by the latest 8K UHD devices in commercial and residential applications. Our cables are tested to ensure continued compatibility with all 8K@60Hz and 4K@120Hz high refresh rated devices and provide a lifetime of perfect device connectivity.

Features

• Uncompressed transmission of HDMI content up to 48Gbps:
  • 2K (2560 x 1440p) 240Hz
  • 4K (4096 x 2160p) 144Hz
  • 5K (5120 x 2880p) 60Hz
  • 8K (7680 x 4320p) 60Hz
  • 10K (10240x4320p) 30Hz
  • Timings listed are quoted as 4:4:4 8-bit
• Compatible with all Dynamic HDR and HDR standards:
  • HLG (Hybrid Log Gamma)
  • HDR-10 and HDR-10+
  • Dolby Vision
  • PQ (Perceptual Quantizer)
  • SL-HDR-1
• Ready for future HDCP 2.3 content encryption
• Compatible with eARC HD audio standard for on-demand content from smart TV’s
• Supports HDMI2.1 FRL (Fixed Rate Link) 16/18b e
• Native HDMI communication ensures CEC and audio return communication between compatible devices
• Supports HDMI2.1 features such as QFT (Quick Frame Transport), QMS (Quick Media Switching), ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
• Supports High Speed Ethernet with 100 Mb/s Ethernet Channel
• CL3 rated 30 AWG

TAILORED FOR RESIDENTAL AND COMMERCIAL
Featuring the latest in HDMI specification; HDMI 2.1, the EXP-HDMI-xM-8K cables serve to future proof installations to be 8K ready. They also pass the current 4K/120Hz spec found in modern game consoles, which HDMI 2.0 doesn’t.

UNCOMPRESSED 48GBPS BANDWIDTH
Our Essentials 8K cables are the ideal choice for the highest, most reliable and affordable connection of 8K@60Hz UHD, with a wide range of sizes. FRL transport mean they’re HDCP 2.3 compliant, eARC, CEC, VRR & ALLM compatible.

VARIETY OF SIZES
We carry a variety of HDMI cables sizes, including 0.5m, 1.0m, 2.0 and 3.0m. For longer runs, our FRL Hybrid Active Optical Cables will take you the distance.

DURABLE CONSTRUCTION
We take pride in the quality of our HDMI cables, which contain 99.999% oxygen-free gold-plated, copper conductors, which protect against oxidation for excellent conductivity. Also, they’re constructed with a flexible, durable foil-insulated material, making them highly resistant to kinks and strain, for extended product life.

FUTURE PROOFING
Using our next-generation HDMI cables today will save frustration tomorrow. HDMI 2.1 is here and will be the standard for years to come, unless re-running cables behind walls and ceilings is your thing.

Technical Specifications

• Input/Output
  • 1x HDMI: 19-Pin Type A Male
• Video Encoding
  • Uncompressed
• Encoding Data Rate
  • 48Gbps
• End to End Latency
  • Zero
• Video Resolution (Max)
  • 1920 x 1080p @240Hz
  • 2560 x 1440p @240Hz
  • 4096 x 2160p @144Hz
  • 5120 x 2880p @60Hz
  • 7680 x 4320p @60Hz
  • 10240 x 4320 @30Hz
• Supported Standards
  • DCI | Dynamic HDR | Static HDR | HDR10+ | SL-HDR1 | Dolby Vision | HLG | PQ | BT.2020 | BT.2100

• Enhanced Audio Return Channel (eARC)
  • Supported
• Audio Formats
  • 2ch PCM | Multichannel LPCM | DTS-X | Dolby Atmos
• Maximum Sampling Rate
  • 192KHz
• Maximum Audio Channels
  • 32

• HDCP
  • Pass-through, 2.3 Supported
• EDID
  • Pass-through Bidirectional
• Ethernet
  • 100Mbps Supported
• Auto Low Latency Mode (ALLM)
  • Supported
• Variable Refresh Rate (VRR)
  • Supported
