USB 3.2 USB-C to USB-C Cable

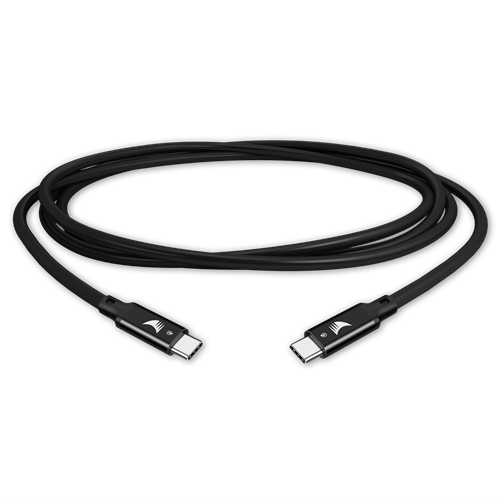

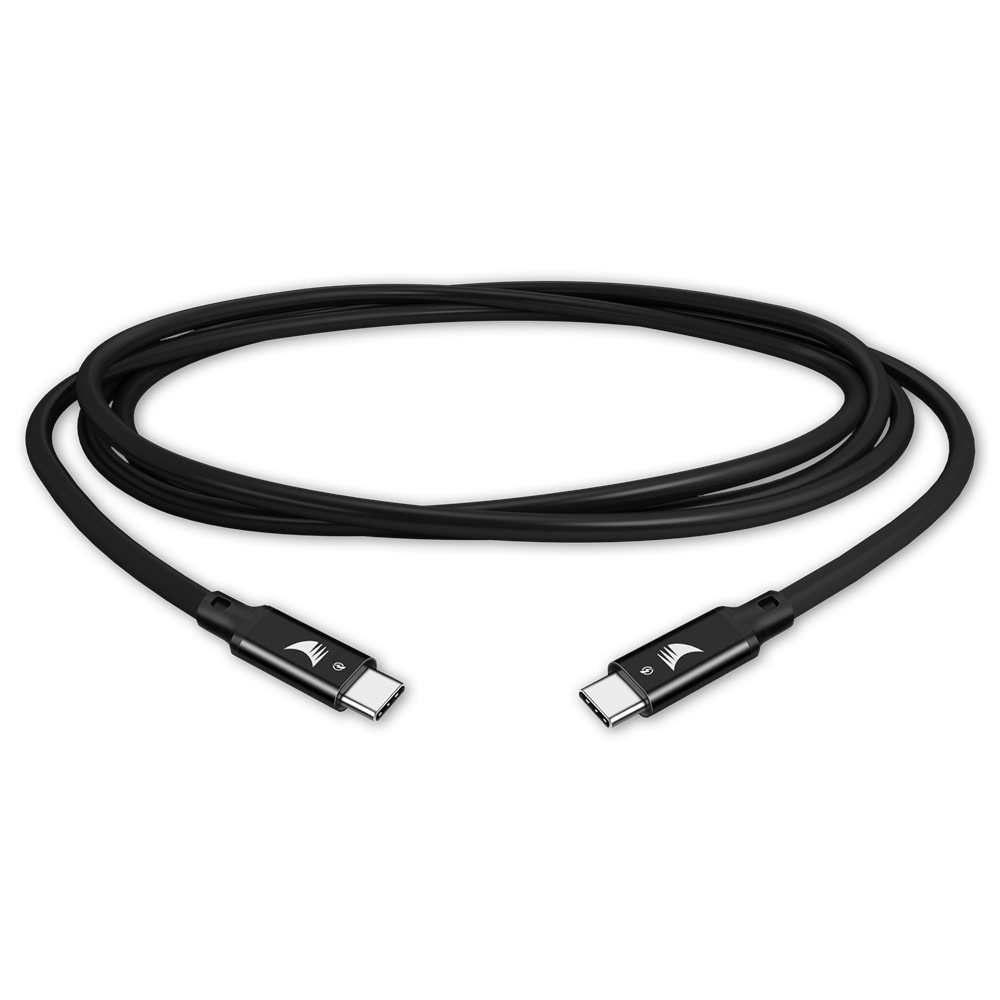

The EXP-CAB-USBC-xM is a high-quality USB size C to C cable capable of transmitting A/V and data over standard copper. Designed for performance, this cable supports USB type C speed up to Superspeed 20Gbps, ensuring fast file transfers and smooth connectivity for USB 3.0 equipped devices such as conference cameras. The EXP-CAB-USBC-xM also supports Alt-Mode, which allows 4K60 video to be transmitted from USB-C laptops or mobile devices. Pair this cable with a WyreStorm Apollo or presentation switcher/IDB in-desk-box to take advantage of the 100W power delivery so you can keep your device charged while you present.

Key Features

• Superfast USB Type C Speed – Transfer data up to 20Gbps with USB 3.2 Gen2x2 Superspeed.
• USB Size C Compatibility – Works with laptops, mobile devices, cameras, and WyreStorm solutions.
• Alt-Mode Video – Stream or present in 4K60 directly from a USB-C device.
• 100W Power Delivery – Keep your devices charged while you use them.
• Durable Build – Aluminum heads + reinforced PVC jacket for long-lasting reliability.

SuperSpeed Performance

With a 16-lane core rated for the USB 3.2 Gen2x2 Superspeed specification, the EXP-CAB-USBC-xM supports blazing-fast USB type C speed of up to 20Gbps. Perfect for large file transfers, professional video editing, or connecting high-speed USB devices such as 4K cameras. If performance matters, this USB size C cable is built for the job.

Alt-Mode 4K Video

Alt-Mode extends functionality beyond data. Connect a USB size C laptop or mobile device to send high-resolution 4K60 video to a display, conference room setup, or WyreStorm presentation switcher. With USB type C speed, video and presentations remain smooth and reliable.

100W Power Delivery

Keep working without interruption. This cable delivers up to 100W of power, ensuring your laptop or device stays charged while in use. Ideal for USB size C devices paired with WyreStorm UC Apollo products or in-desk solutions – combining power, video, and USB type C speed in one connection.

Built to Last

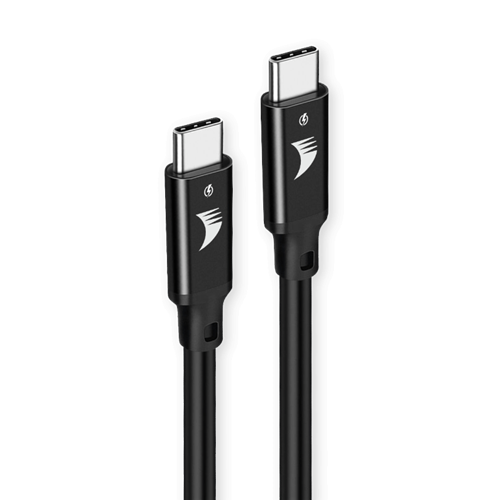

The EXP-CAB-USBC-xM is constructed with cast aluminum heads and a thick PVC jacket, built to withstand bends, pulls, and daily wear. Designed for professionals who need both durability and performance, this USB size C cable ensures long-term reliability while maintaining maximum USB type C speed.

Technical Specifications

AUDIO & VIDEO

• Video Resolution (Max):
  • 1920x1080p @ 240Hz
  • 4096x2160p @60Hz 4:4:4 10bit
  • 4096x2160p @60Hz RGB
• Audio Formats: 2ch PCM
• Supported Standards: RGB | USB Superspeed | USB Alt-Mode

• USB: USB 3.2 Gen 2×2 | Superspeed 20Gbps

• Power Supply: 20V 5A (100w)

• Operating Temperature: 14°F ~ 158°F (-10°C ~ 70°C) | 0% ~ 85%, non-condensing
• Storage Temperature: -40°F ~ 185°F (-40°C ~ 85°C) | 0% ~ 85%, non-condensing

• Length: (1M/3FT)/(2M/6FT)
• Weight: 1M (.043kg/.09lbs) 2M (.066kg/.15lbs)

• Safety and Emission: CE | FCC | RoHS | RCM | EAC

FAQs

What is USB size C?
A: USB size C (commonly called USB-C) is the latest connector standard that offers a smaller, reversible plug design. It supports data, video, and power delivery through one cable, making it more versatile than older USB types.

What is USB type C speed?
A: USB type C speed depends on the cable’s specification. The EXP-CAB-USBC-xM supports USB 3.2 Gen2x2 Superspeed, delivering transfer rates of up to 20Gbps – ideal for large files, 4K video, and high-performance devices.

Can this USB size C cable charge my laptop?
A: Yes. With 100W Power Delivery, the EXP-CAB-USBC-xM can charge laptops, tablets, and mobile devices while simultaneously supporting data and video transmission.

Does this USB size C cable support 4K video?
A: Yes. With Alt-Mode, you can transmit up to 4K60 video from a USB-C enabled device to a display, making it perfect for meetings, classrooms, and content creation.

Is this cable durable enough for daily use?
A: Absolutely. The EXP-CAB-USBC-xM uses cast aluminum heads and a reinforced PVC jacket designed to withstand everyday bending, pulling, and heavy use without losing USB type C speed performance.
