Acoustic panels

This is a Special Order Item

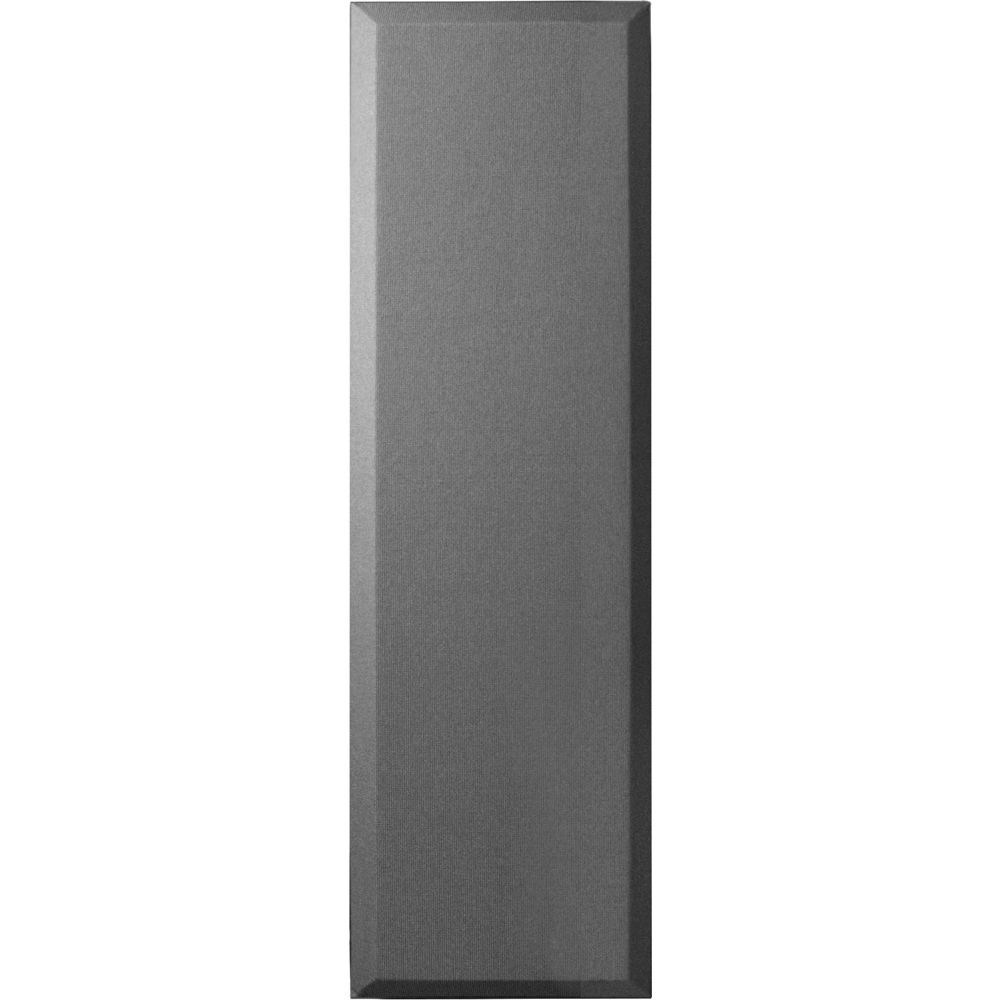

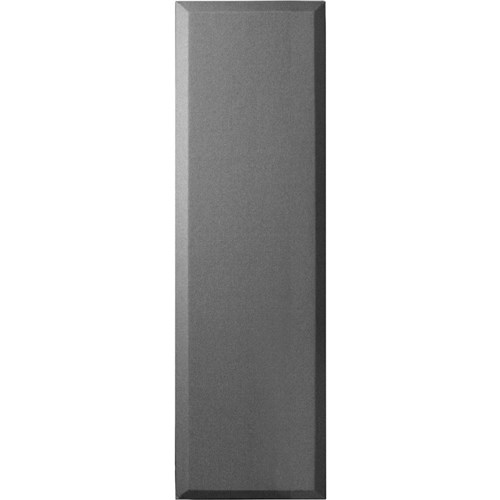

12" x 48" x 3" - Bevelled Edge Panel - GREY F123 1248 08

Product Code: RA-B1248-BV3-GR

Brand
Primeacoustics
RRP $1,910.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Primacoustic
  • Details
  • Downloads
  • Ordering

Broadway Control Columns BevelLed Edge Panel - 8pc Set - Grey

Features

  • Used to control powerful primary reflections
  • 'Roman Pillar' shape is ideal for spacing along walls
  • Easy-to-install on practically any surface
  • Adapts well to most architectural designs, with attractive bevelled edges

Broadway Control Columns present an attractive, 'easy-to-install' solution for acoustic treatment where you want to control primary reflections, eliminate flutter echo and reduce standing waves.

Made from high density 6lb per cubic foot high density glass wool, Control Columns are designed to be arranged in a ‘spaced array’ to treat bothersome first order reflections that interact with the sound source and the listener. The panels are typically spread across a wall surface leaving space in between each panel. This allows some of the energy to reflect back into the room so as not to completely deaden the space while maximising the panel’s absorptive efficiency.

The Control Column's long narrow design is reminiscent of the historic 'Roman Pillar' making it an ideal compliment more demanding architectural designs. This makes the Control Columns an excellent choice for LEDE live-end / dead-end studio designs and home theatres. For those with creative flair, Control Columns can be combined with Primacoustic Accent panels to create an attractive solution for office spaces, board rooms, restaurants and lobbies that often need to be tamed in effort to reduce the reverberant field.

Broadway Control Columns come in a choice of 1", 2" and 3" thick panels with choice of square or bevelled edge. Color options include black, grey or beige.



Specifications

Core Material: Formed, semi rigid inorganic glass fibers
Density: 6.0 lbs. per cubic foot (96 kg/m3)
Fabric Facing: Acoustically transparent polyester tweed
Encapsulation: Micromesh on front and rear surface, resin treated edges
Absorption H2O: < 2% by weight @ 120°F (49°C), 95% relative humidity
Temperature: -20°F ~ 150°F (-29°C ~ 66°C)
Fire Rating: Class-A
Mounting: Galvanized steel impalers
Absorption Coefficient:
  125 250 500 1000 2000 4000 NRC
1" 0.17 0.28 0.81 1.00 1.02 0.95 0.71
2" 0.45 0.83 1.07 1.00 1.01 1.00 0.89
3" 0.92 0.91 1.00 1.00 1.02 1.03 0.98



Mounting
Mounting Control Columns is easy and quickly accomplished using Primacoustic Surface Impalers. Most installations only require two impalers per panel. For areas with higher traffic, three or four impalers may be used. For extra security, add a dab of construction adhesive on the impalers, to secure the panel in place. This is recommended in class rooms or public places.

Panel Details

  • Size -12" x 48" (30.48 x 121.92 cm)
  • Color - Grey
  • Thickness - 3" (7.62cm)
  • Edge Treatment - Bevelled edges
  • Qty. in Box - 8
  • Surface Coverage per Box -32 sq-ft total (2.97 sq-meters)

Product Documents

No documents available
