The CAB-USBC-15 is an active optical USB-C to C cable capable of transmitting A/V and data 15m. USB data is rated up to Superspeed 5Gbps for fast file transfers or connecting USB 3.0 equipped devices such as conference cameras. The CAB-USBC-15 also supports Alt-Mode which allows 4K30 video to be transmitted from USB-C laptops or mobile devices. Pair this cable with a WyreStorm Apollo or presentation switcher to take advantage of the 60W power delivery so you can keep your device charged while you present.



Unlike most USB-C AOCs (Active Optical Cables) on the market, WyreStorm’s CAB-USBC-15 supports USB Alt-Mode – meaning that the cable supports 4K30 video passthrough in addition to two-way USB 3.2 Gen1 data transmission (5Gbps). The USB-C SuperSpeed data capability is ideal for fast file transfers or for connecting USB 3.0 equipped devices such as conference cameras for a reliable high quality video transmission.

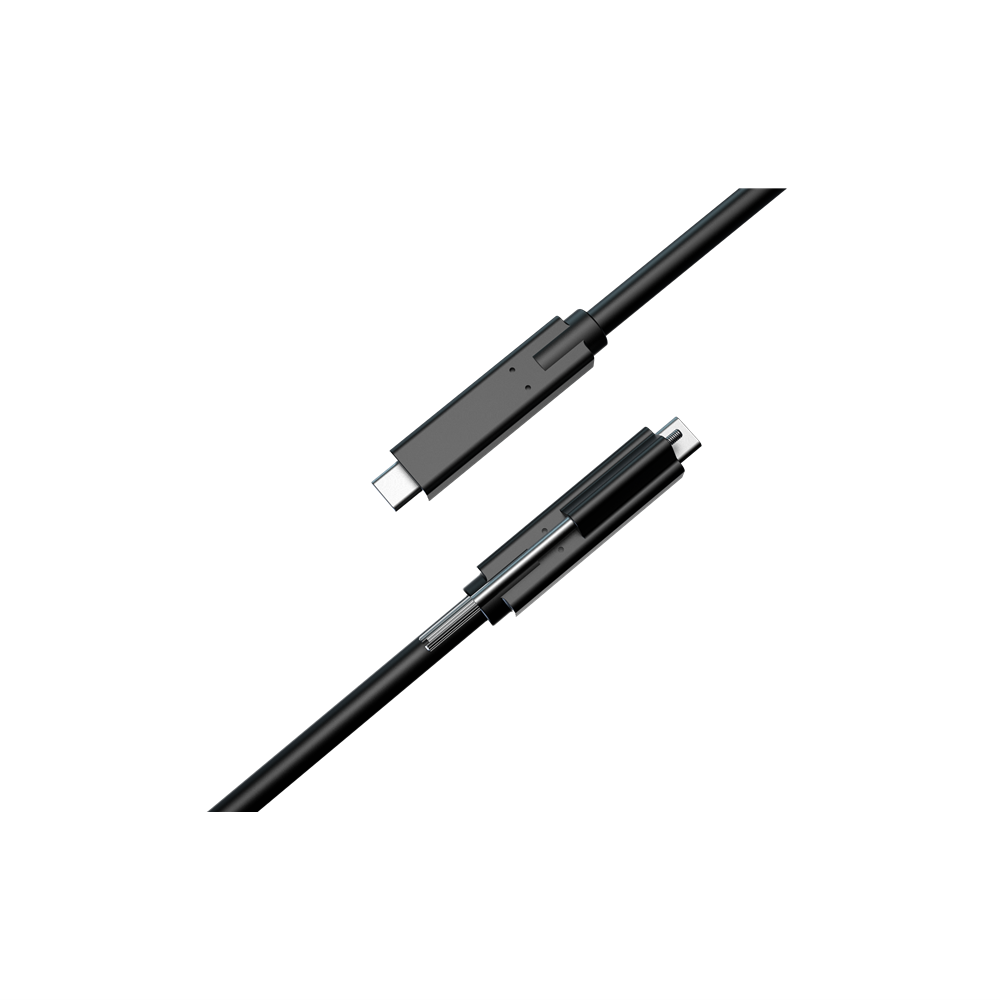

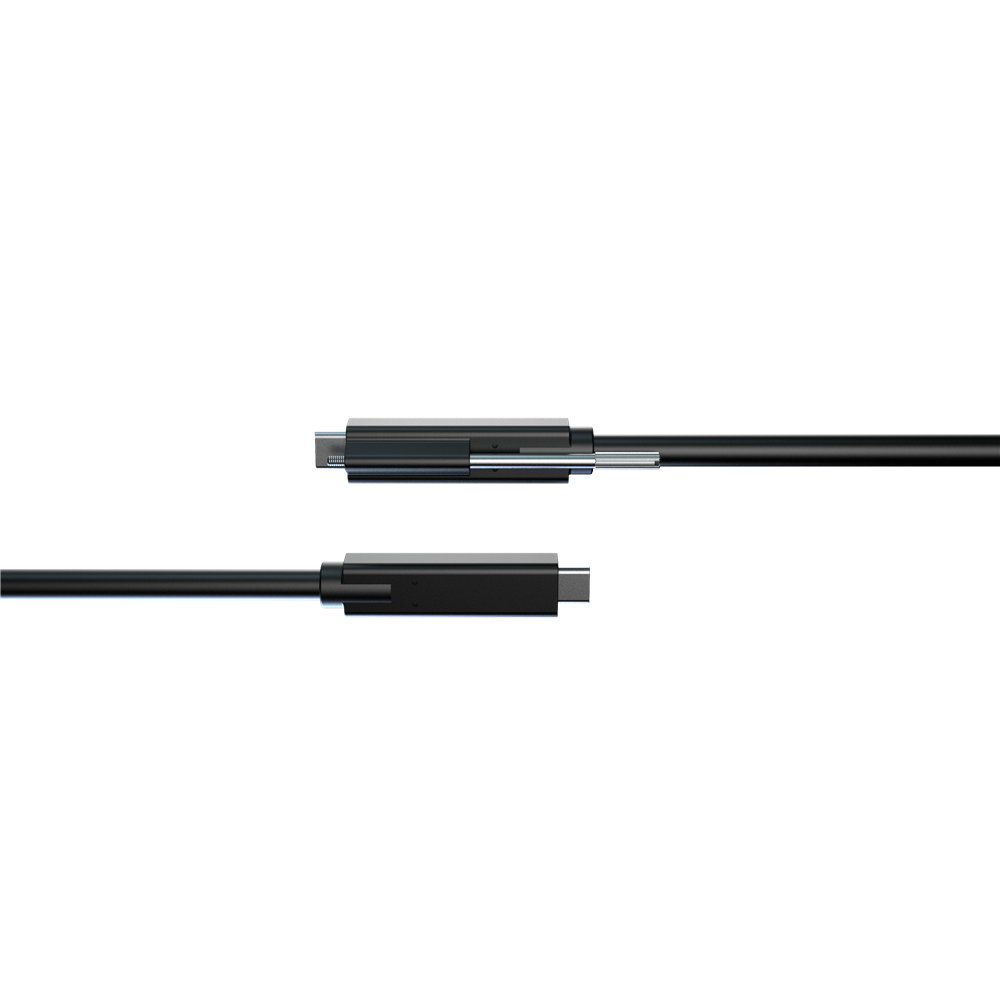

The new cable has maximum pull tension of 20kg/44lbs, and maximum turn radius of a staggering 0.5cm/0.19in, making it ideal for walls/floor runs to reach the desired USB-C equipment easily. A screw-lock connector is featured on one end of the cable, great for ensuring the connection remains secure, especially in permanent installation scenarios.

Technical Specifications

AUDIO & VIDEO

Video Resolutions (Max)

1920x1080p @ 60Hz

3840×2160 @30Hz 4:4:4 8bit

Audio Formats

2ch PCM

Supported Standards

RGB | USB Superspeed | USB Alt-Mode

COMMUNICATION & CONTROL

USB

USB 3.2 Gen 1 | Superspeed 5Gbps

POWER

Power Supply

20V 3A (60w)

Max Power Consumption

1100mW (5v input)
