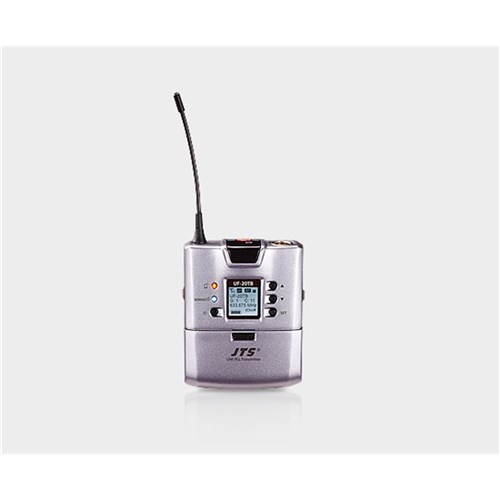

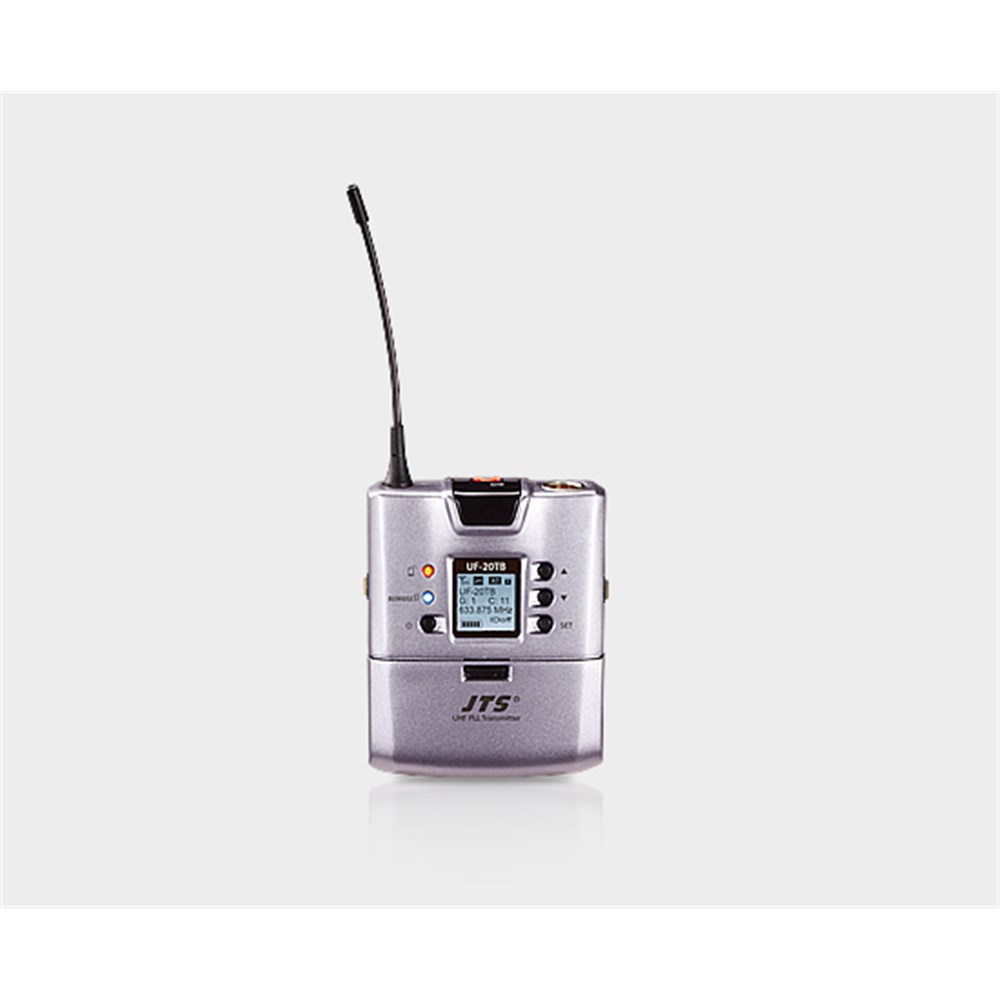

UF-20TB

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Extended dynamic range and smooth frequency response.
• Adjustable transmission power between Low and High
• The panel Lock-On function prevents tampering and RF interruption
• Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

NEWEST FEATURE:

• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• UHF 624-694MHz

Bandwidth

• 60~75MHz Wideband

RF Outputs

• Low / High

Stability

• < ±10KHz

Frequency Deviation

• ± 48KHz (Peak)

Chassis

• Aluminium alloy

LCD Display

• Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust

Controls

• Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Output Connector

• 4P Mini XLR

Spurious Emissions

• <-50 DBC

Audio Frequency Response

• 50Hz ~ 18k Hz

Battery

• AA NiMH x2

Dimensions

• 62mm (W) x80.3mm (H) x22.6mm (D)

Weight

• 93g

Notes

• Actual product specifications may vary depending on model and region.

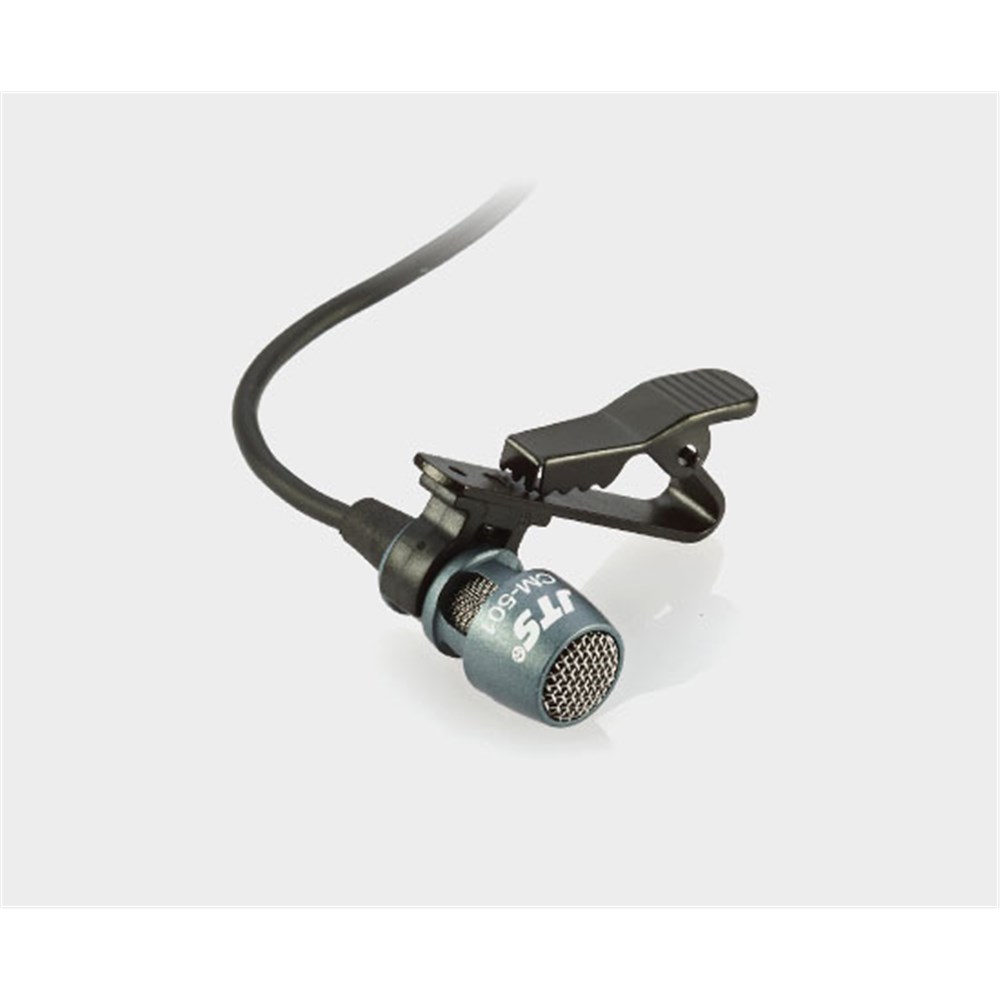

CM-501

• Uni-direction for high-quality voice pick-up.
• Wide dynamic range and frequency response for excellent sound reinforcement.
• Small size for minimum visibility.
• Together with clip for easy attaching to a tie, lapel, dress etc.

SPECIFICATIONS

Connector

• 4P Mini XLR

Frequency Response

• 100~15,000 Hz

Polar Pattern

• Cardioid

Sensitivity (at 1KHz)

• -60±3 dB* (1mV)*0dB=1V/μbar

Impedance

• 2.2kΩ

Max. SPL for 1% THD

• 130dB

Dimension(mm)

• Ø10.1mm(W)* 26.4mm(H)

Net Weight

• 21.5g
