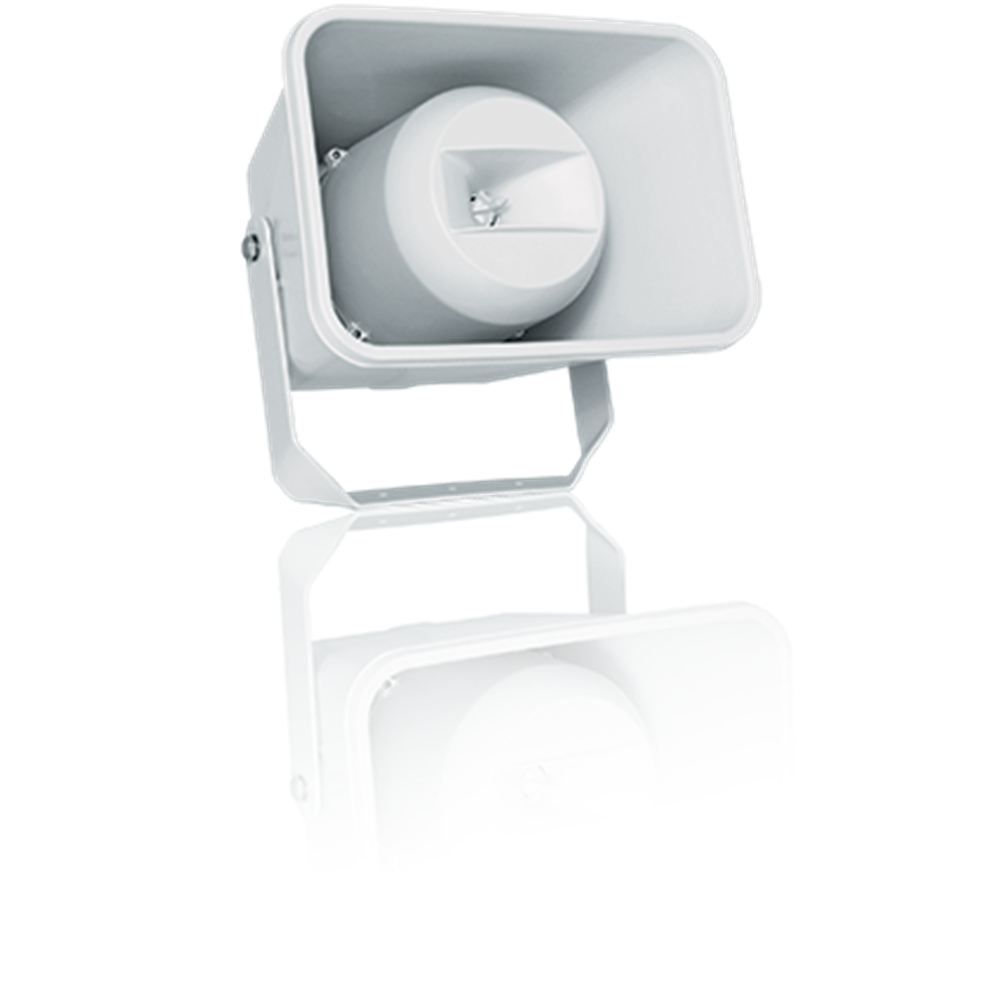

The SPHM-30W-EN54 is a 30W 100V two-way music horn loudspeaker which gives a high sound pressure level for internal and external applications, and which is certified to EN54-24. The SPHM-30W-EN54 has a well balanced frequency range, and provides very good speech and background music quality. The speaker is fitted with a 100V transformer which has four power adjustment tappings of 30W, 15W, 7.5W and 3.75W.
The SPHM-30W-EN54 has a robust impact resistant ABS housing, which is sealed to the IP66 environmental standard. Thus the speaker is sealed against the ingress of dust, and is sealed against high pressure water jets for sustained weather resistance in industrial applications. In addition, the body meets the UL94 V-0 flammability standard. The speaker is coloured to match RAL7035 ‘Light Grey’.
Mounting of the speaker is provided using a stainless-steel ‘U’ bracket, which provides a number of flexible mounting options. The 100V loudspeaker line cabling is connected by means of a ceramic block, and for additional reliability a thermal fuse is provided. There is also a strap-on mast bracket available as an accessory, part number SPAC-MB-80. This mast bracket is suitable for use with masts of up to 200mm diameter. EASE data is available for this speaker on request.
