Optoma

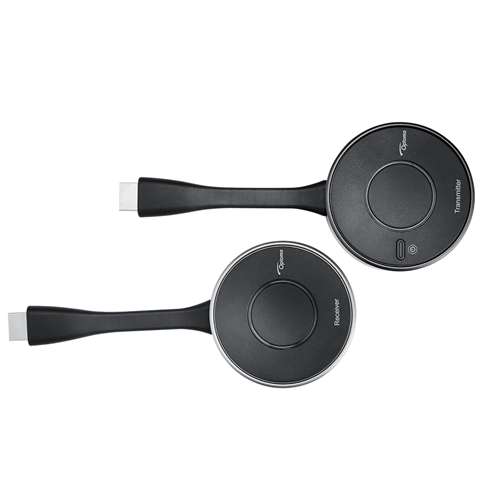

QuickCastPro-4K (1Rx + 1Tx)

Product Code: OP-QUICKCAST-4K

Brand
Optoma
RRP: POA


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Optoma
Native Resolution 4K
Projector Category Accessories
  • Details
  • Downloads

4K Wireless Display & Presentation System QuickCast Pro-4K

Easily broadcast 4K video sources wirelessly

Easily share content from HDMI sources, tablet or computing devices wirelessly via the Optoma Quickcast Pro. Simply connect the QuickCast Pro receiver to an HDMI input and plug the HDMI or to the source and begin wirelessly transmitting office documents, presentations, videos and digital content with the click of a button.The HDMI Transmitters feature an integrated battery with up to 6 hours of battery life for crystal clear digital video and presentations without being tethered to a power adapter. Operating on 802.11ac MIMO technology on a 5 GHz frequency ensures maximum connection stability with minimal interference signal interference up to 10 meters away.

Transmitter
CPUQuad-core ARM Cortex Processor
OSLinux
Video Codec & ResolutionEncoder.(H.265)
3840 * 2160 /30
1920 * 1200 /30
1920 * 1080 /30
1280 * 720 /30
1024 * 576 /30
720 * 480 /30
WLANIEEE802.11a/b/g/n/ac(MIMO)
5Ghz (5.150 ~ 5.850 Ghz)
Audio2Ch Stereo
Size 70 x 70 x 28mm + Cable 100mm
Power Battery or AC/DC Adapter 5V/1A
I/O USB C for power 1EA
HDMI Video In 1EA
Button Power On/Off Push S/W 1EA
Mirroring On/Off Push S/W 1EA
LEDPower On/Off State LED 1EA
Mirroring State LED 1EA
Mirroring State LED 1EA
EDID Support
Latency < 140ms
Distance < 10m
Booting Time < 20sec (with in wifi connection and HDMI handshake)
Pairing Tx & Rx (IP/SSID Auto)
Device Pairing N:1 & 1:1
Power Consumption < 500mA
Video Interface HDMI
Video Replay Time 7H (24H when connected USB C power)
Charging Time < 300Minutes_nomal
Battery Pack Capacity3500mAh
Weight 120g
Receiver
CPU Quad-core ARM Cortex Processor
OSAndroid
Video Codec & ResolutionEncoder.(H.265)
3840 * 2160 /30
1920 * 1200 /30
1920 * 1080 /30
1280 * 720 /30
1024 * 576 /30
720 * 480 /30
WLANIEEE802.11a/b/g/n/ac(MIMO)
5Ghz (5.150 ~ 5.850 Ghz)
Audio 2Ch Stereo
Size 70 x 70 x 22mm + Cable 100mm
PowerAC/DC Adapter 5V/1A
I/O USB C for power 1EA
HDMI Video Out 1EA
Button Pairing Push S/W 1EA
LED On/Off State LED 1EA
EDID Support
Latency< 140ms
Distance < 10m
Booting Time < 25sec
Pairing Tx & Rx (IP/SSID Auto)
Device Pairing N:1 & 1:1
Power Consumption < 500mA
Video Interface HDMI
Weight 56g
