AMB1200

2 x 600W Power Amplifier

Rugged Low Impedance Amplifier

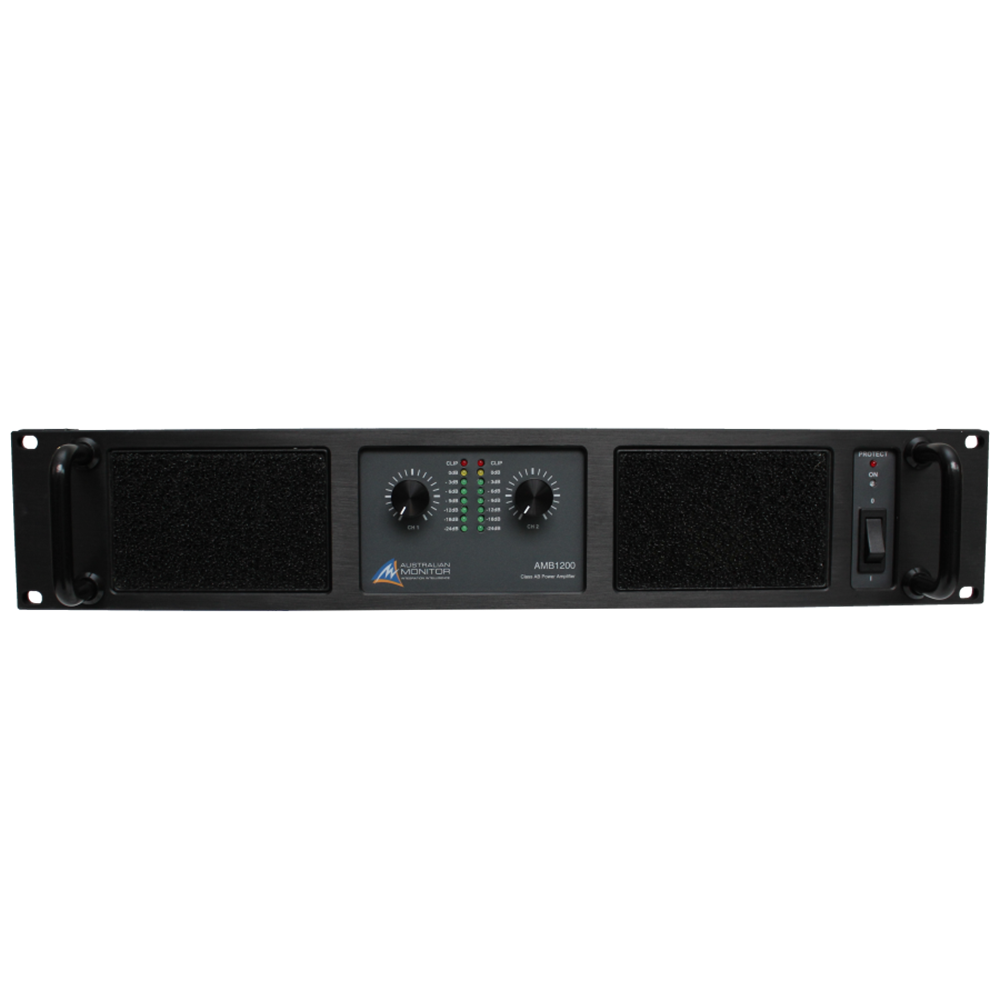

The AMB1200 is a 2RU class AB stereo power amplifier delivering 1200W into mono, stereo or bridged outputs. The AMB1200 features individual front panel volume control, level meter, clip and protection indicators.

The AMB series of power amplifiers have been specifically designed and built to offer Australian Monitor customers a reliable, outstanding value for money amplifier for applications that require high quality audio reproduction that they can depend on.

• 1200W power amplifier
• 4 Ohm / 8 Ohm Operation
• Mono, Stereo or Bridge Mode operation
• Class AB operation

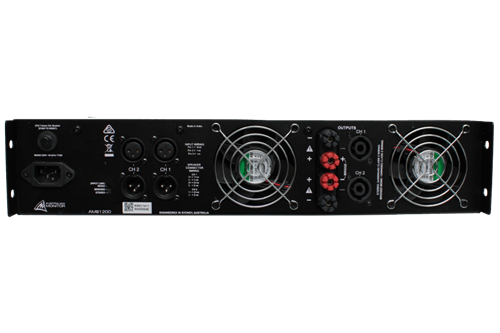

• Balanced XLR input and thru output
• 2 RU
• Fan cooled

Specifications

• Output Power per Channel: 600W
• Frequency Response: 20Hz - 20kHz
• Output Channels: 2
• THD+N: < 0.06% (-3dB)
• Output Mode: 4 Ohm-8 Ohm
• Signal to Noise Ratio: > 100dB
• Input Voltage: 230Vac 50-60Hz
• Input Sensitivity: 1.23Vrms (+4dBu)
• Mounting: 2RU
• Cooling: Fan-assisted
• Warranty: 5 years
• Product Dimensions:
  • (W x D x H) 483mm x 366mm x 88mm Shipping Dimensions
  • (W x D x H) 530mm x 465mm x 188mm
• Net Weight: 13.9 Kg
• Shipping Weight: 16.5 Kg
• GTIN EAN: 9323383014541
