Vocal and instrument processors

Radial SIXPACK - 6 slot power-rack, desktop format,1600mA power supply

Product Code: RA-SIXPACK

Brand
Radial Engineering
RRP $1,579.00
*Recommended Retail Price may not be a true representation of the market price

Unit of Measure
EACH



3 Year
Features
UPC EAN 6761010 4087 2
Technical Specifications
Brands Radial Engineering
Product type Audio Interfaces
Series 500 series
  • Details
  • Downloads

6-Slot Power Rack for 500 Series

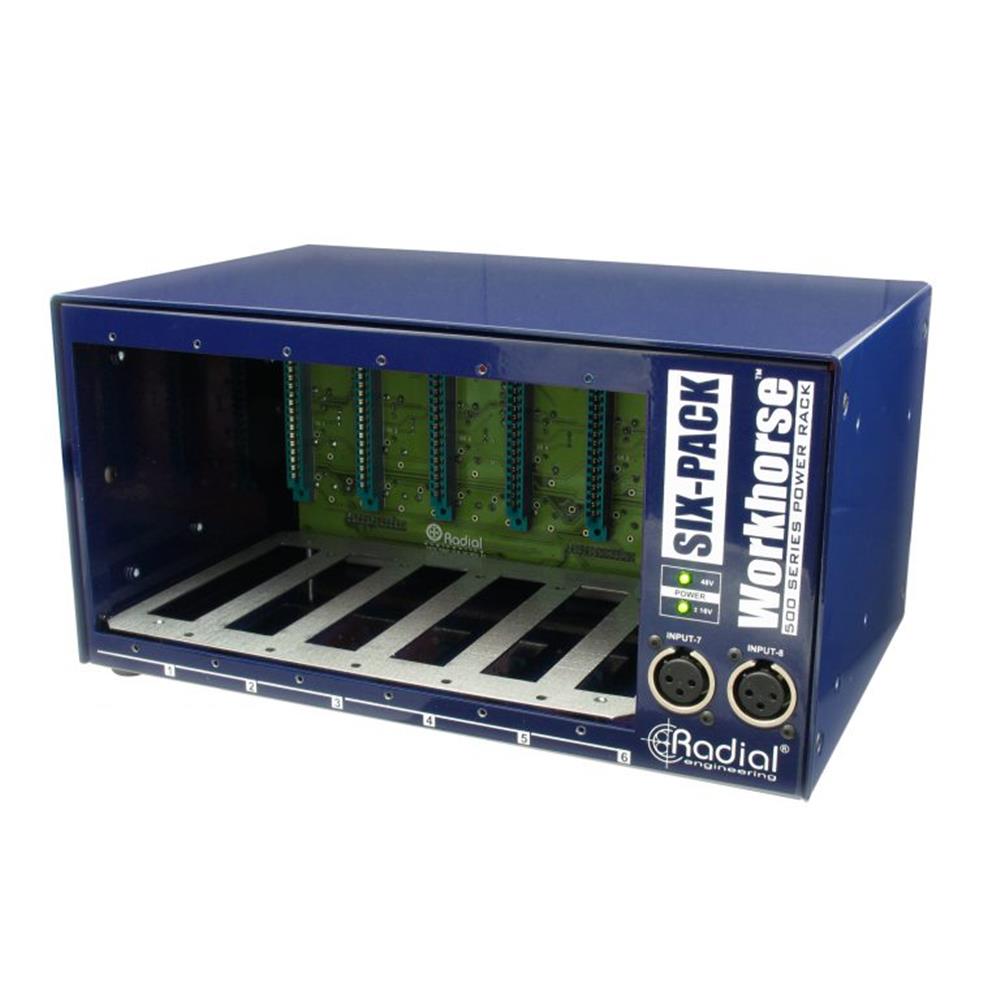

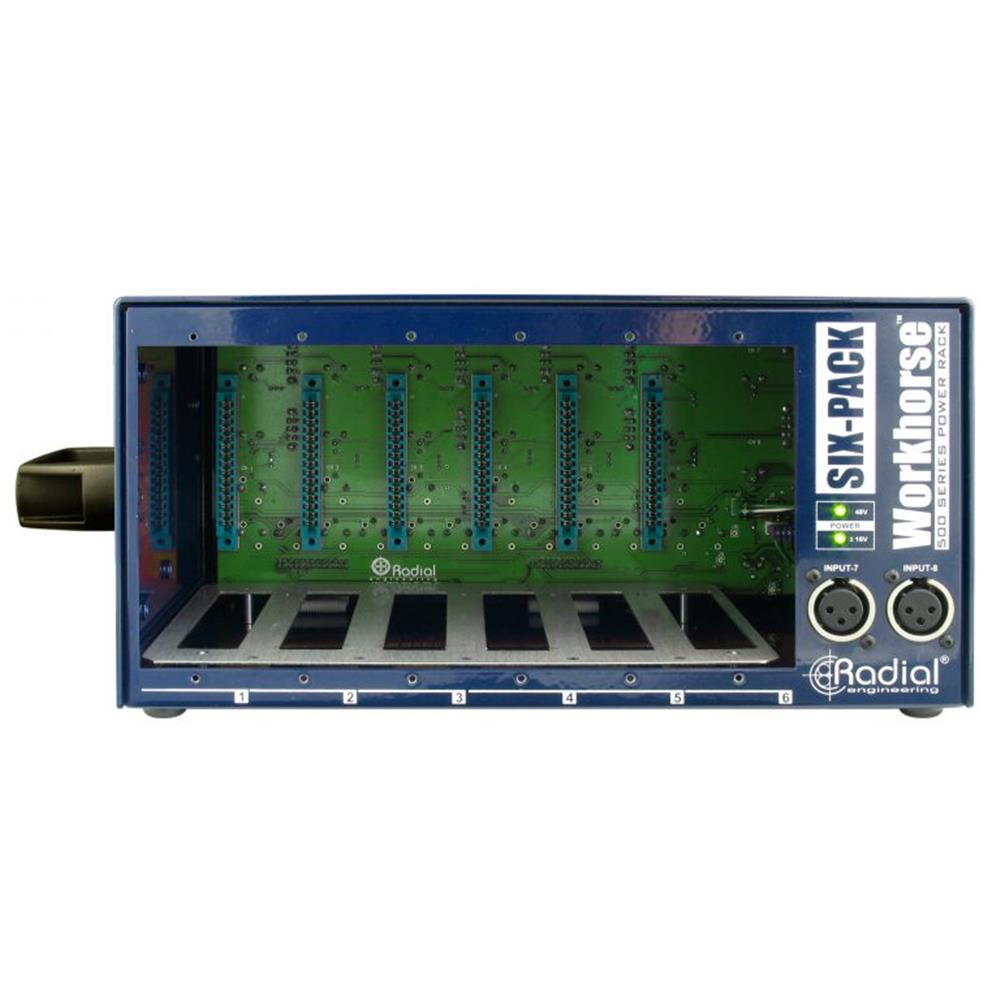

The SixPack is a desktop power rack for 500 series modules that lets you mix and match up to six modules and safely power them to create a stereo channel strip or unique signal chain.

A blue and green electronic deviceDescription automatically generated

  • Portable 6 slot power rack with carry handle
  • Perfect for stereo channels or as a studio side car
  • Powerful 1600 milliamp supply will not sag when loaded
  • Workstation ready with front panel convenience XLRs
  •

Serious power

The design begins with a heavy 14-gauge steel construction and durable powder coat finish. This provides extra durability when moving the SixPack around the studio while also providing better shielding against stray magnetic fields. To reduce induced noise, the power supply is external and connects using a 5-pin locking XLR. To ensure positive contact, the module card-edge connector is mated to a double sided EDAC 15-pin receptacle that is 100% compatible with the old API pin format. Extra safety is built-in to ensure malfunctioning modules will not harm the SixPack or other modules that may already be connected. And with 1600 milliamps of shared current, the SixPack exceeds all others with an average of over 265 milliamps per slot to ensure even the most power hungry tube modules will be satisfied.

A blue box with a green circuit board insideDescription automatically generated

A blue audio mixer with many portsDescription automatically generated with medium confidence

Connections

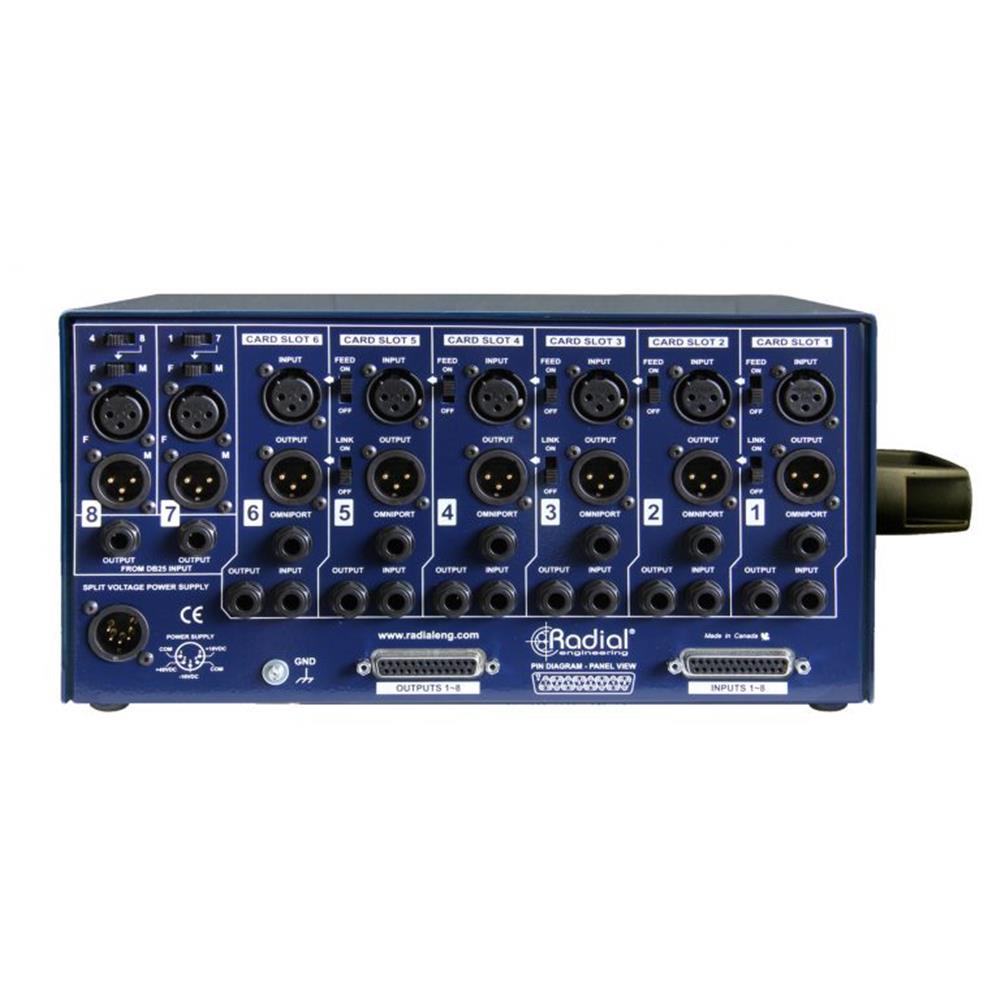

Rear panel connectivity includes individual XLR input and output connectors wired in parallel to ¼" TRS connectors. These may be used as mults or for cross-patching various modules together to create innovative sounding signal paths. A set of 25-pin D-Sub connectors enable the SixPack to easily integrate with a Workstation. Two XLR connectors are front mounted and may be routed to the D-Sub or to inputs 1 and 4 to make patching in a microphone more expedient. Extra features include a feed switch that patches one module into the next, a link switch to combine stereo-ready modules and Omniport, a ¼" TRS jack that adds extra functionality.

SixPack Applications

A close-up of a sound mixerDescription automatically generated

Using the Six pack to build a stereo channel

Use the SixPack's six slots in a 3 + 3 format to create the ultimate stereo channel strip. Combine a PowerTube preamp with a Q4 class-A EQ and a Komit compressor and you have everything you need to get the job done.

A guitar next to a sound mixerDescription automatically generated

Using the SixPack on the road

Fill the SixPack for your next session by recording direct using a JDV instrument preamp Q3 coil EQ and Komit compressor. Combine this with a microphone using a PowerPre mic preamp, Q4 parametric EQ and a PhazeQ to phase-align both channels.

A diagram of a machineDescription automatically generated with medium confidence

Using the SixPack as a side car

Build the ultimate analog side car to warm up those digital tracks. Start with two Q4 class-A semi parametric EQs and then phase align the two channels with the PhazeQ. Add an EXTC to bring in a guitar pedal, Reamp out using the EXTC, frequency divide a track using the Tossover.

Reviews

A white rectangular sign with blue textDescription automatically generated

"I am quite impressed with the amount of thought that went into the design and specifications of this unit. As you can see from the limited amount of "limitations" I commented on, there really aren't any significant flaws to it. It's solidly-built and has thoughtful features nearly everywhere you look that make the unit easier or more flexible to use. It's a marvel of excellent design and engineering."

By Phil O'Keefe

Related Products

A close-up of a power stripDescription automatically generated

PowerStrip

3-Slot Power Rack

The PowerStrip is a 3-slot power rack for 500 series modules, designed to create a compact channel strip with 500 milliamps of available current.



A blue box with a lid openDescription automatically generated

Cube

3-Slot Power Rack

The Cube is a 3-slot power rack for 500 series modules, designed to create a portable channel strip with 500 milliamps of available current.



A close-up of a blue boxDescription automatically generated

Workhorse

8-Slot Power Rack

The Radial Workhorse is an 8-slot 500 series power rack with a built-in analog summing mixer, headphone amp and extensive patching capabilities.



A close-up of a blue boxDescription automatically generated

WR-8

8-Slot Power Rack

The Radial WR-8 is an 8-slot power rack that lets you load up to eight 500 series modules. Can be expanded with the WM8 mixer for full Workhorse capabilities.



Accessories

A group of metal screwsDescription automatically generated

ThumbSet Screws

ThumbSet Screws allow you to easily mount 500 series modules in Workhorse Power Racks without the need for a screwdriver. Set of 12 screws and washers.



A black rectangular object with screwsDescription automatically generated

Duo

Double-Wide Panel

Duo filler panels cover two unused 500 series slots and protect your power racks from dust and other contaminants.



A black rectangular object with white textDescription automatically generated

Solo

Single-Wide Panel

Solo filler panels cover unused 500 series slots and protect your power racks from dust and other contaminants



Blue metal parts and screwsDescription automatically generated

SixPack Rack Adapter

The SixPack Rack Adaptor allows the SixPack 500 series power rack to be mounted in standard 19" rack enclosures.
