Amplifiers

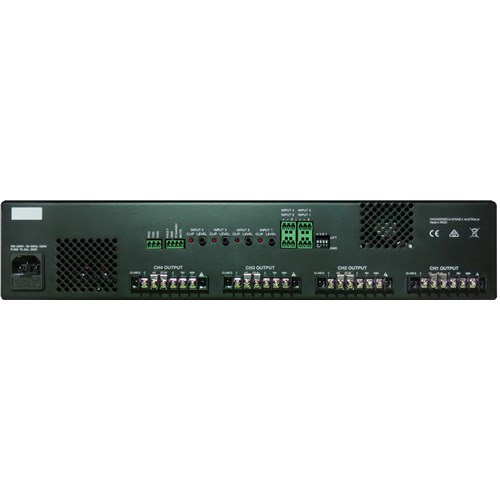

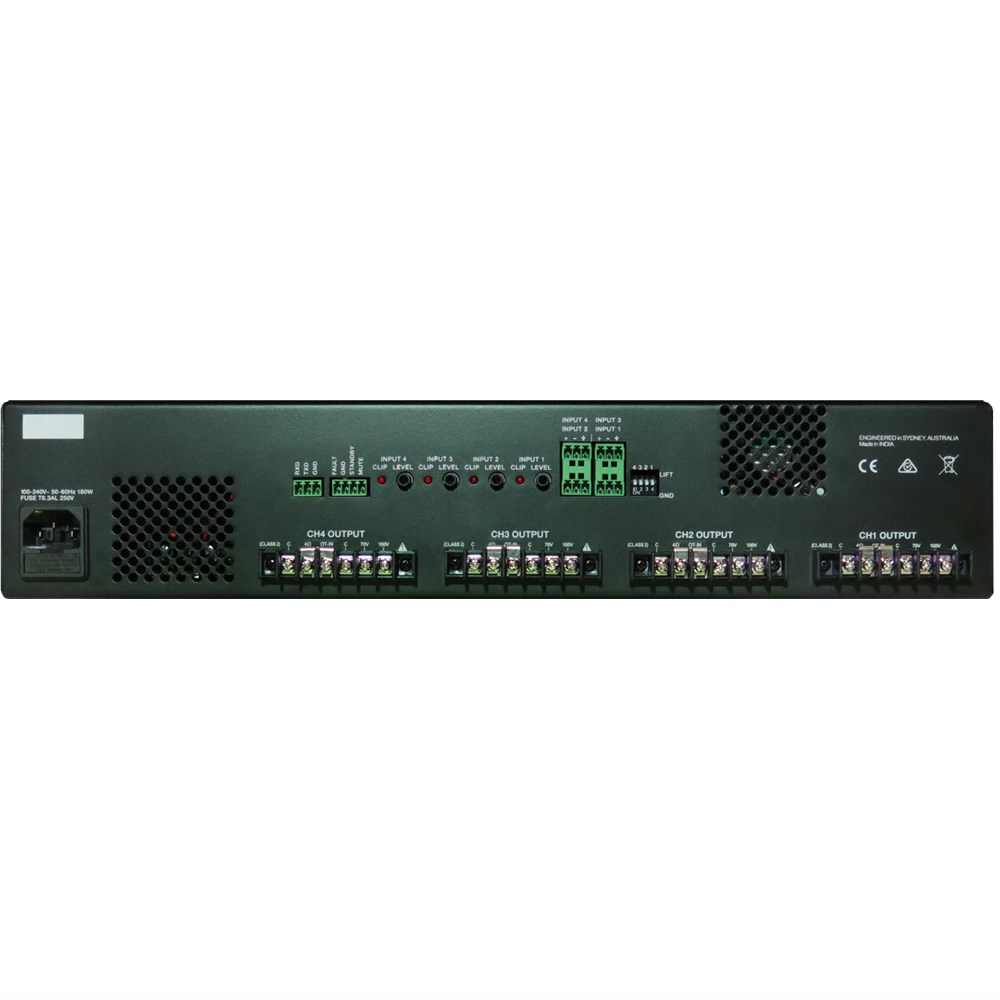

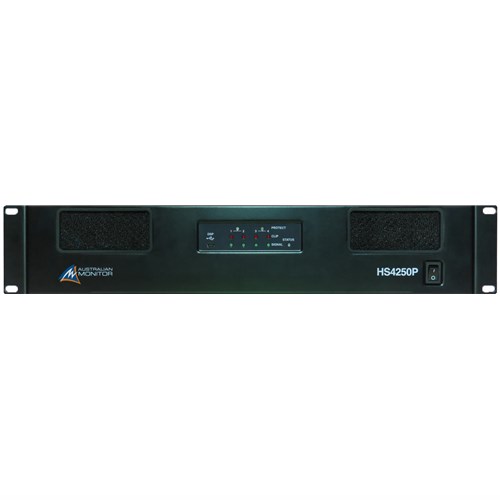

4 x 250 watt Power Amplifier with DSP and RS232 HS4250P Australian Monitor

Product Code: AJ-HS4250P

Brand
Australian Monitor
RRP $3,519.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Channel count 4
  • Details
  • Downloads

HS4250P


4 x 250W Power Amplifier

USB/RS232 Control with miniDSP

The HSP series is Australian Monitor's next generation of controllable Class D power amplifiers, delivering high quality audio reinforcement with the power you need in the following options -Single channel 120W or 250W, Dual channel 120W or 250W and Quad channel 120W or 250W.

Our new power amplifiers are fully featured, including an efficient Class D amplifier, USB and RS232 control and a mini DSP featuring volume control, mute, compressor/limiter, filter and input channel selection.

The HSP series power amplifiers give the AV contractor a reliable amplifier for applications that are price sensitive yet still require high quality commercial sound reinforcement and control.

Download HSP Control Software from here
  • 4 x 250W power amplifier
  • 4 ohm or 70/100 volt output
  • Class D topology
  • Programmable via PC UI application
  • USB and RS232 control
  • Mini DSP - Volumes Controls, Input / output routing, High and low shelf filtering, Compressor / limiter, Filtering, Pink noise / sine wave generator, Mutes, Inversion
  • Mute control via contact
  • Standby control via contact
  • Fault status via contact

Specifications

  • Output Power per Channel: 250W
  • Frequency Response: 100Hz - 16kHz
  • Output Channels: 4
  • THD+N: < 0.25% (-3dB)
  • Output Mode: 4 Ohm-70V-100V
  • Signal to Noise Ratio: > 91dB
  • Input Voltage: 100-240Vac 50-60Hz
  • Input Sensitivity: 1Vrms
  • Mounting: 2RU
  • Cooling: Fan-assisted
  • Warranty: 5 years
  • Product Dimensions:
    • (W x D x H) 483mm x 389mm x 89mm Shipping Dimensions
    • (W x D x H) 546mm x 491mm x 197mm
  • Net Weight: 16.0 Kg
  • Shipping Weight: 18.6 Kg
  • GTIN EAN: 9323383019959

Product Documents
